 272,00 + VAT

262,0 x 179,0 mm (L x H) Wall-mounted

Availability: 3 weeks

Available on back-order

Shipping in Europe - Worldwide shipping
Collect the goods in our warehouse.

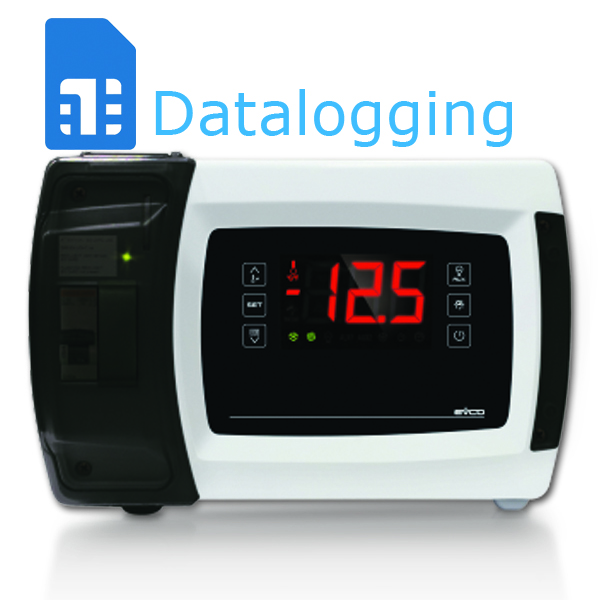

EVBOX1 Datalogging is a range of electrical control panels for single-phase cold rooms with data-logging extension for compliance with the EN12830 standard
Equipped with up to 6 relay outputs, the electrical panels can regulate with great flexibility and energy savings the most varied equipment configurations on the market, including those with management of temperatures as low as -99°C.
The controllers use two relays, rated load 30 A @ 250 VAC, for direct control of high-power compressors and the evaporator fan and they can be adjusted for low and high relative humidity.
Some models have a thermal-magnetic circuit breaker. They all have a clock for memorising HACCP alarms and a data-logging extension on an SD card with built-in battery for data recording, even in the event of a power failure.
The user interface consists of a large custom display with decimal point and function icons, with six buttons. It guarantees IP65 frontal protection. The controllers are designed to be wall-mounted, with fixing screws and plugs.

Weight 1,6 kg
Power supply

Analog inputs



Relay compressor

Other standard

digital inputs, alarm buzzer, clock, RS-485 MODBUS, unipolar magnetothermic switch + neutral (230 VAC, In 16 A, Icn 4.500 A)

    EVB1216N9MLC, Datalogging, data logging, data-logging, HACCP
