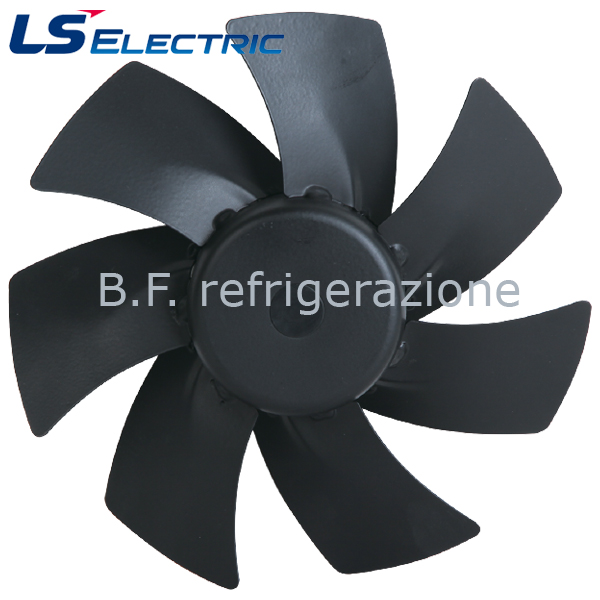

AXIAL FAN EC AS250S/35G1-NN-01

COD: 6A210001

€ 146,00 + VAT

LS Fan Inverter Complete (Motor, Blade & Guard)

EC MOTOR LSECF A092/25/01-AS250S/35G1-NN-01

EC MOTOR LSECF A092/25/01-AB250S/35G1-NN-01

Model

Clear

Shipping in Europe - Worldwide shipping

Collect the goods in our warehouse.

Weight	3 kg
Dimensions	29 × 29 × 16 cm
Voltage	230V (200~277) 50/60 Hz 1 ph, Inverter
Current	≤1.2 A
Power	160 W
Speed	3,000 (r/min)
Max. Air flow	2,100 (m 3/h)
Max. Static pressure	200 (Pa)
Sound level	79 dB(A)
Model	Blower AB250S/35G1-NN-01, Suction AS250S/35G1-NN-01
Material	Steel

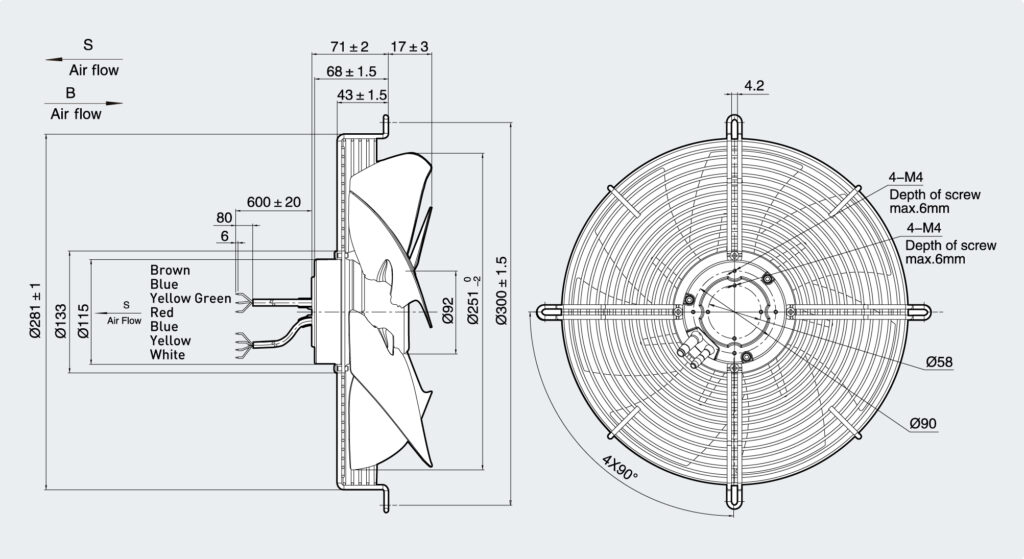

TECHNICAL DRAWING

6A210001, 6A210002, AS250S 35G1 NN 01, AS250S-35G1-NN-01, AB250S/35G1-NN-01, AB250S 35G1 NN 01, AB250S-35G1-NN-01
